bamboo & IPE reflex/deflex bows

£650

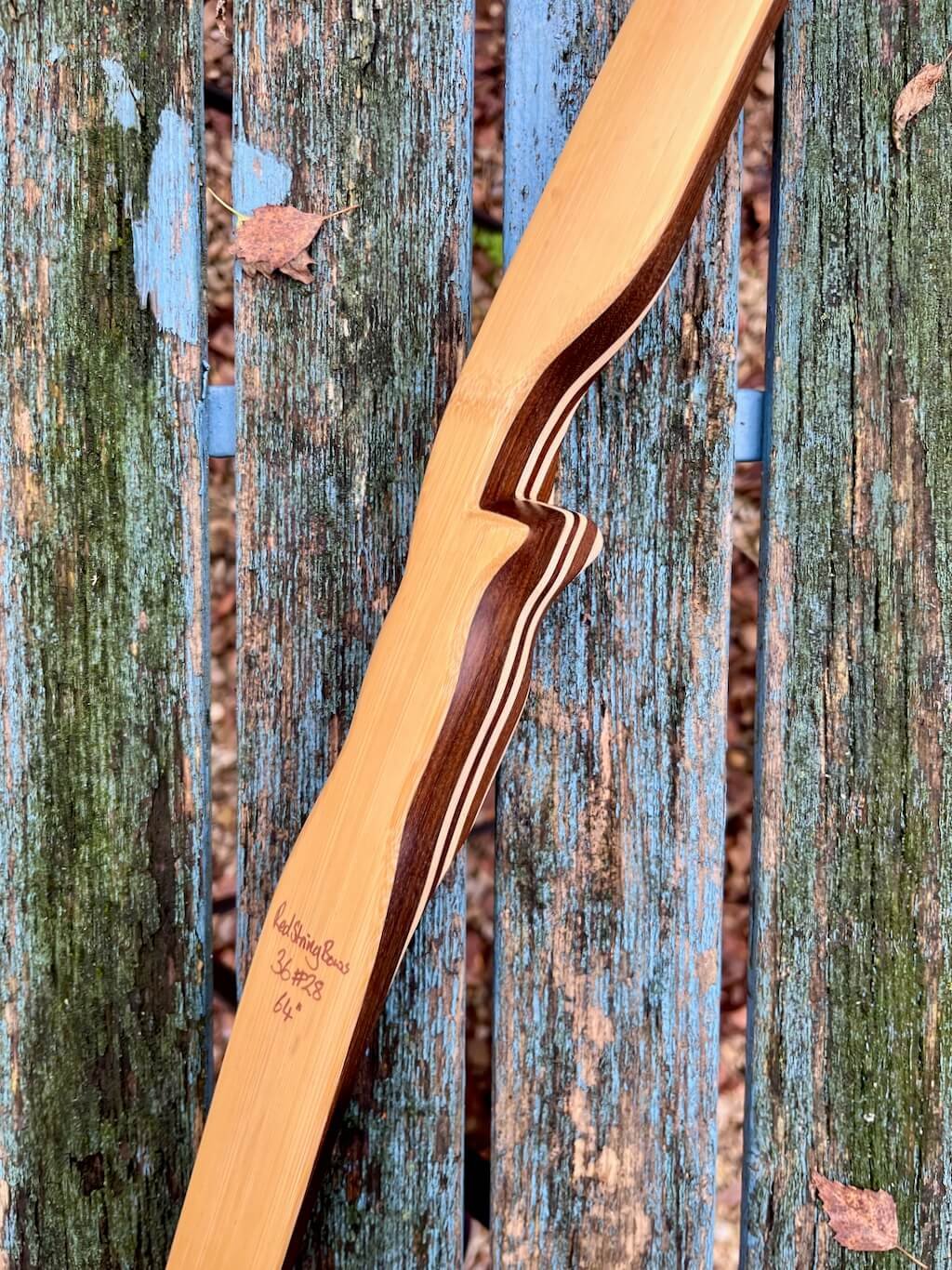

Detail of reflex/deflex bow handle section

Designed as high performance target bows, the supreme compressive strength of ipe paired with the exceptional tensile strength of bamboo make for a sublime combination.

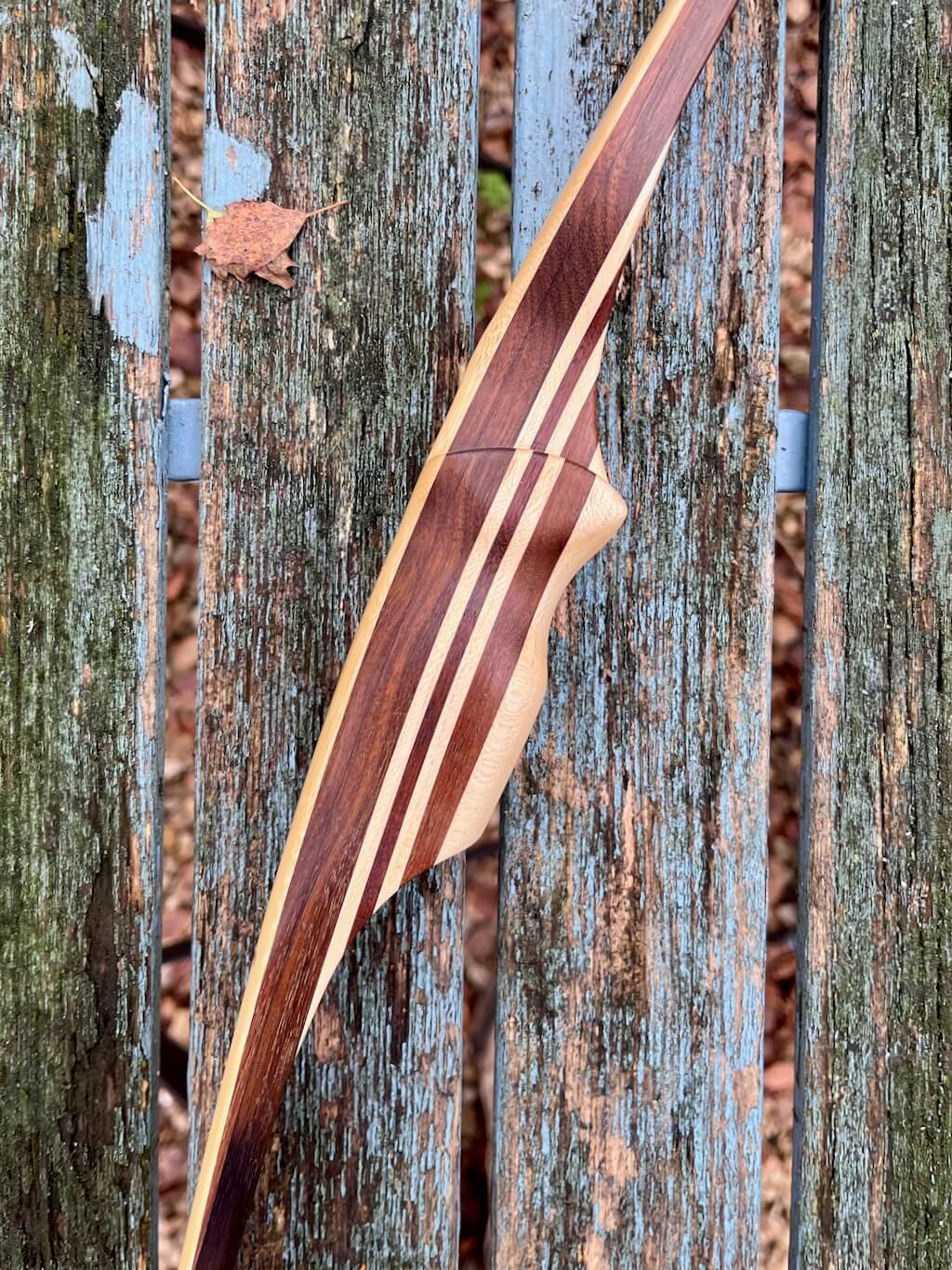

Profile of reflex/deflex bow handle

Reflex and deflex are set into the bow during the lamination process, with the deflex lending stability to balance the speed of the reflex.

A straight taper from handle to nock means the tips are left as slight as possible. These are highly efficient, flat and fast-shooting bows.

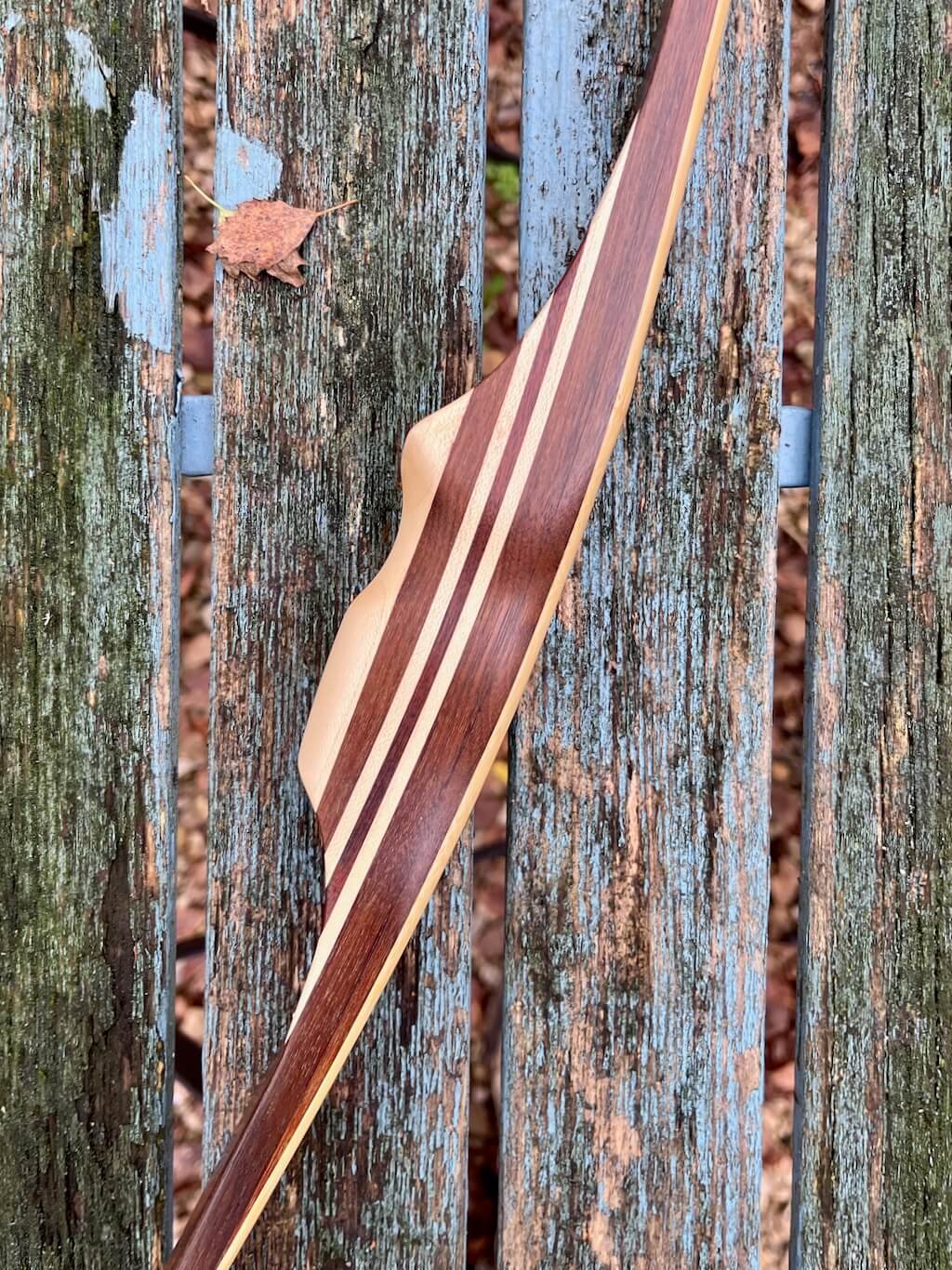

Detail of reflex/deflex bow profile

A power-lam is set into the riser during the glue-up to reinforce the junction of the inner limb and fade.

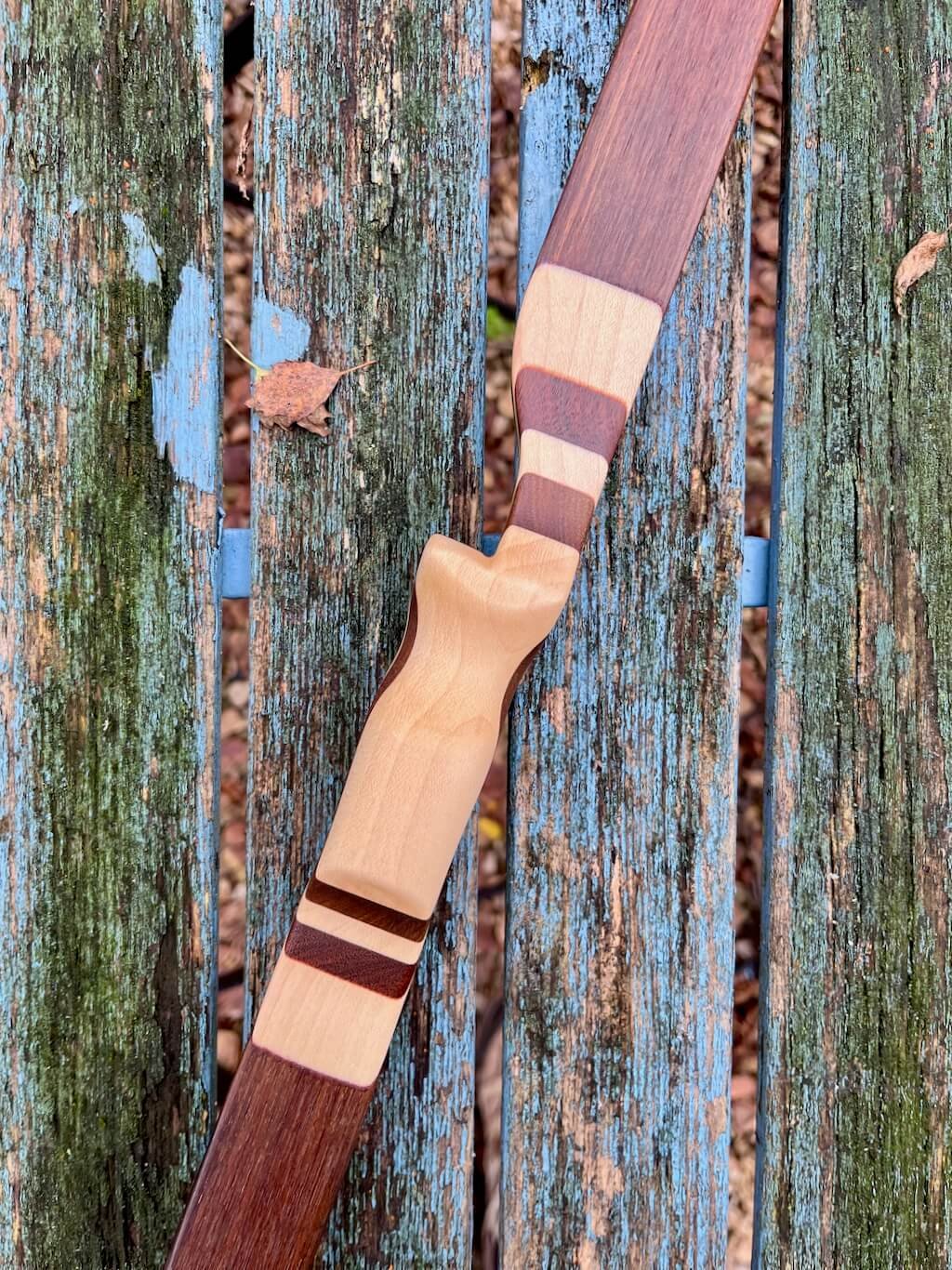

Detail of reverse of reflex/deflex bow handle

A cut-in arrow shelf helps eliminate inconsistencies in the shooting cycle for improved accuracy.

Detail of reflex/defelx bow limb tip in profile

Tip overlays allow for the pairing of a 625 Spectra ‘Fast Flight’ string.

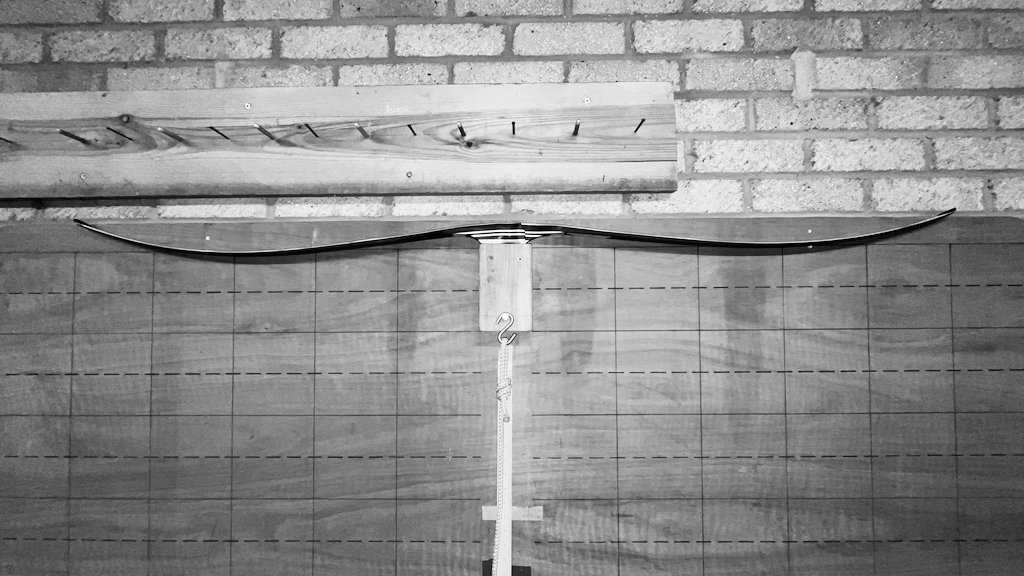

A refelx/deflex bow on a tillering board unstrung

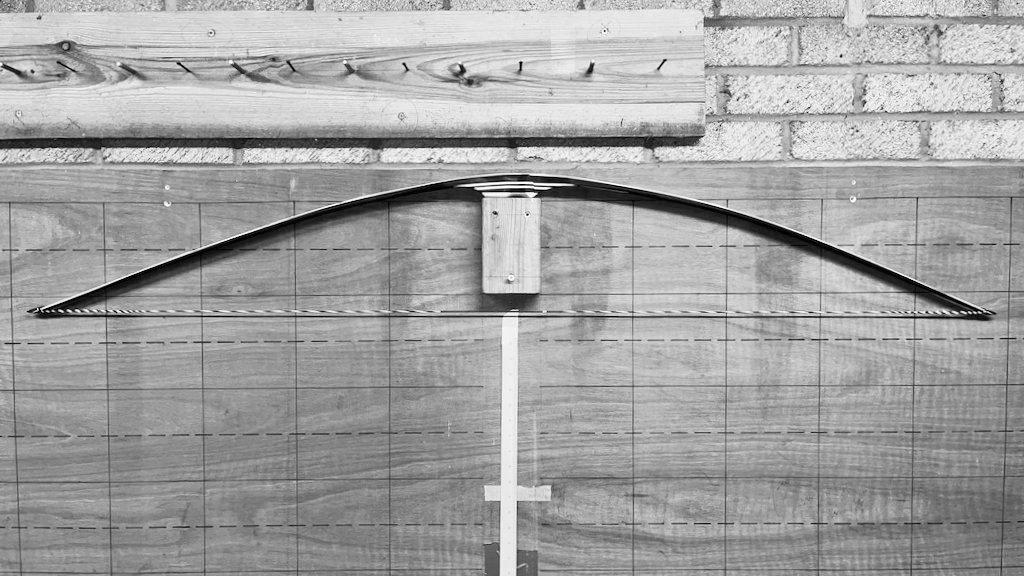

A refelx/deflex bow on a tillering board strung

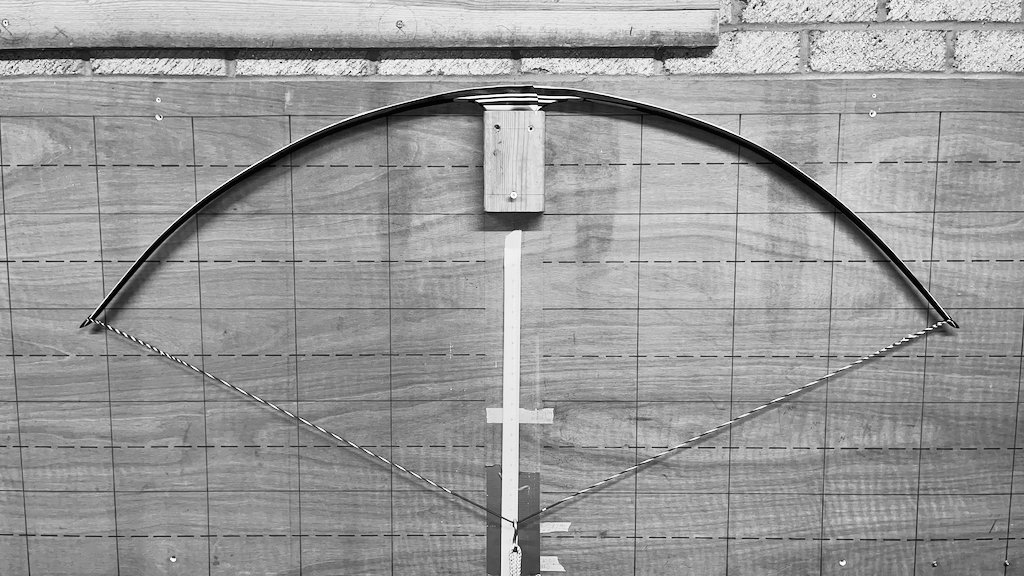

A refelx/deflex bow on a tillering board at full extension

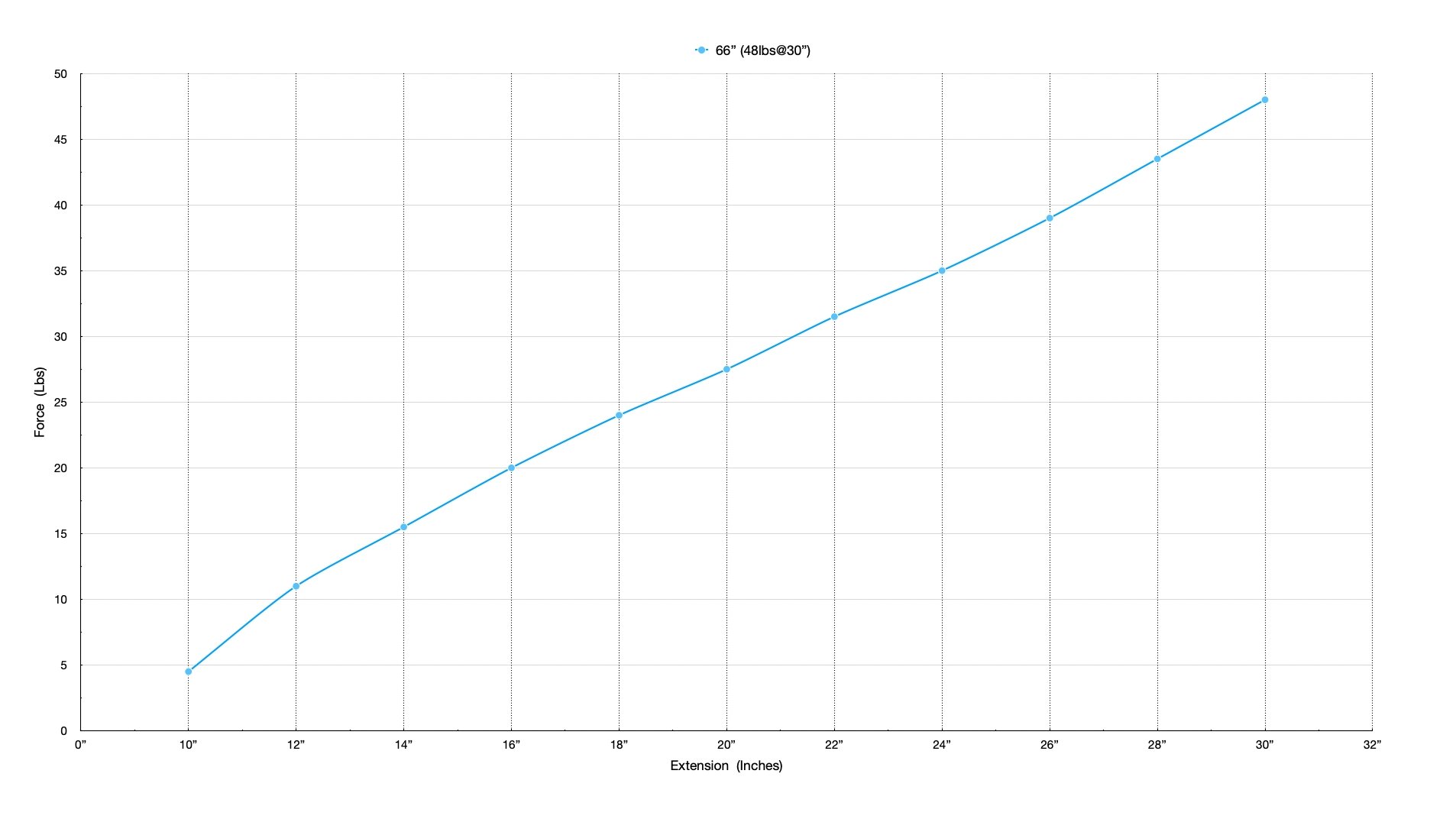

Force / Extension Graph [indicative]

Reflex/Deflex Bow Force/Extension Graph (Indicative)

64/66/68” nock-to-nock

Available in weights of 5lb increments from 30-60lbs @ 28/30/32”

Supplied with a 652 Spectra ‘Fast Flight’ string
